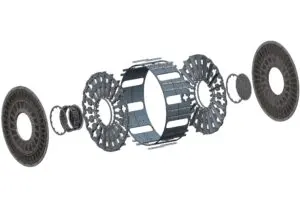

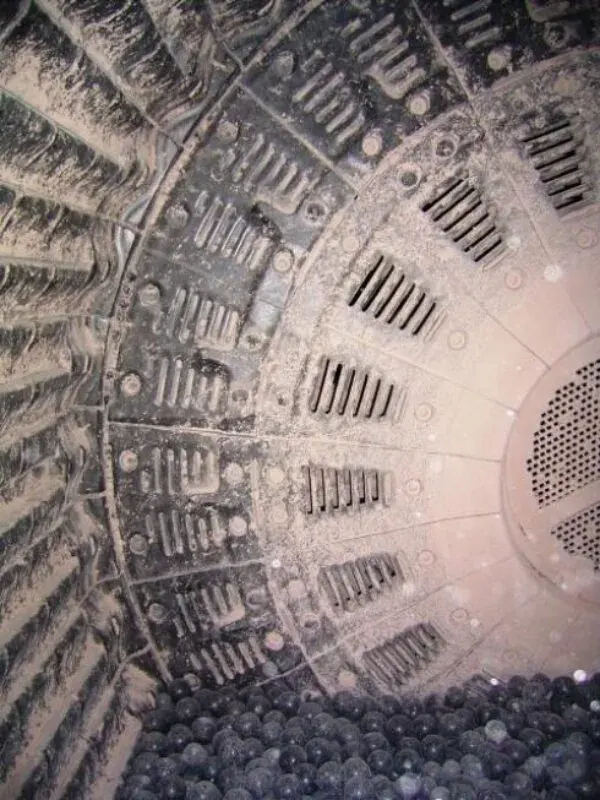

Discharge Diaphragms
Whether you operate mono chamber, a two chambers or a double rotator mill with peripheral discharge, our different versions of Pranston cement discharge diaphragms can be used with the Pranston cement transfer diaphragm and both together make a coherent set of diaphragms.
It is adaptable to any quantity and dimension of the discharge openings in the mill shell.
- Optimization of the grinding process
- Reduced pressure drop due to the large opening area of the center
- Reduced frame wear due to minimal pressure drop
- Full protection of the mill outlet head
- Optimal air and material flows
- Reduced maintenance operations
Applications
- Raw mills
- Solid fuels mills
Specifications
- Flexible structure able to absorb the dynamic deformation of the mill shell
- Limitation of the material projection too far from the diaphragm
- No balls pass into the drying chamber thanks to the central cone and its grid
- Reduced pressure drop due to the use of a cylindrical discharge center
