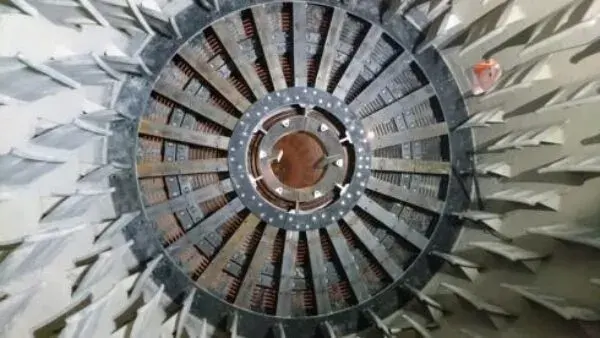

Transfer Diaphragm

The long lasting open transfer diaphragm

Our solution is used when drying material is required. It offers a large opening to the gases to ensure a minimal pressure drop and definitely confines the grinding balls in the first chamber.

  • Increased drying capacity
  • Decreased wear of grates, balls and linings
  • Decreased damage on the drying chamber lifters

Many more solutions can be tailored to best support all of your grinding applications. Get in touch with our experts to find out more.

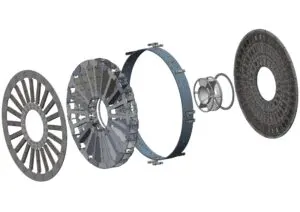

Transfer Diaphragm 1
Transfer Diaphragm
Applications
  • Raw mills
  • Solid fuels mills
Specifications
  • Flexible structure able to absorb the dynamic deformation of the mill shell
  • Limitation of the material projection too far from the diaphragm
  • No balls pass into the drying chamber thanks to the central cone and its grid
  • Reduced pressure drop due to the use of a cylindrical discharge center
